General Description:

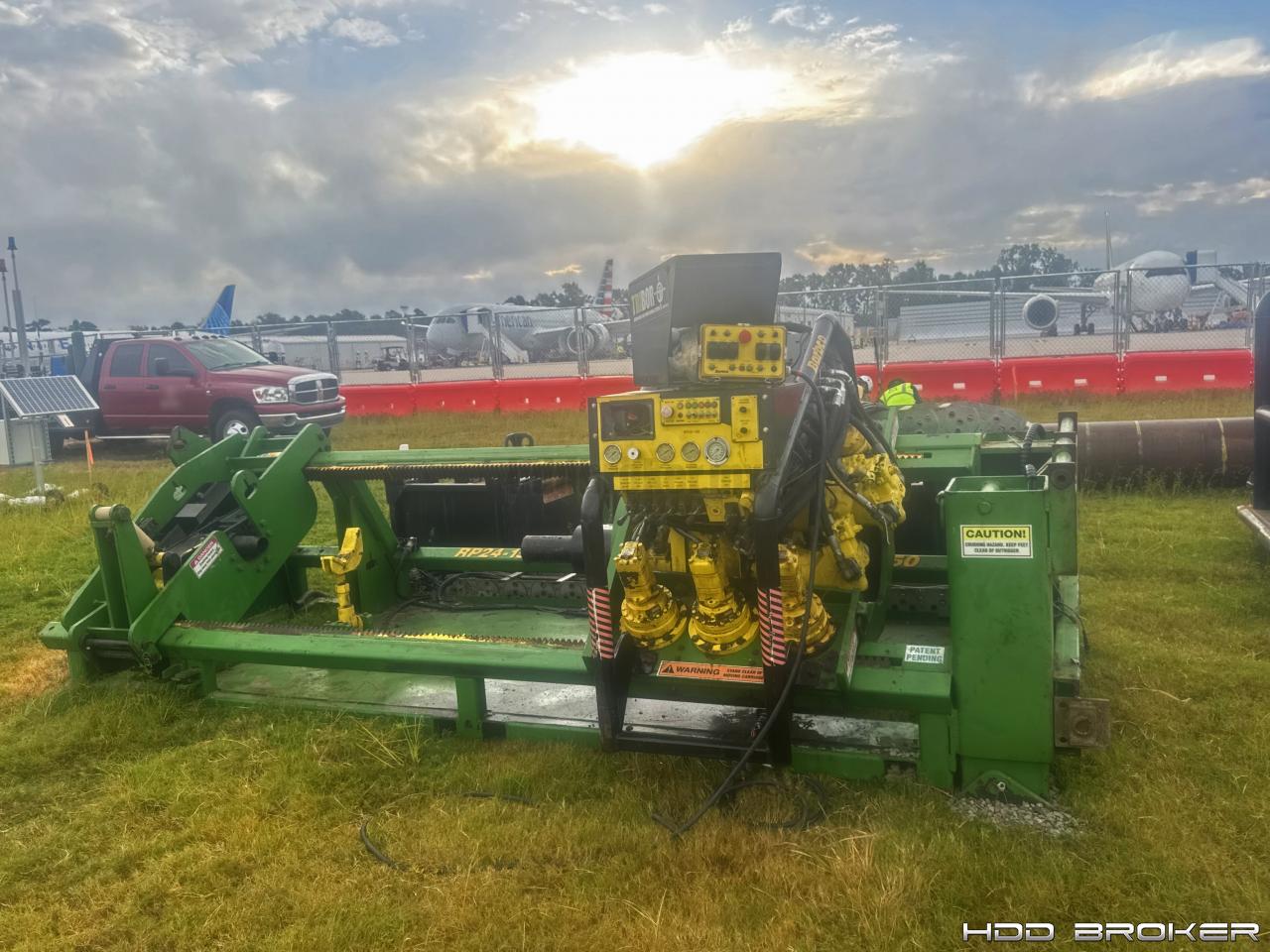

Barbco RP24-150 Tribor Directional Drilling, Auger Boring and Guided Boring Machine.

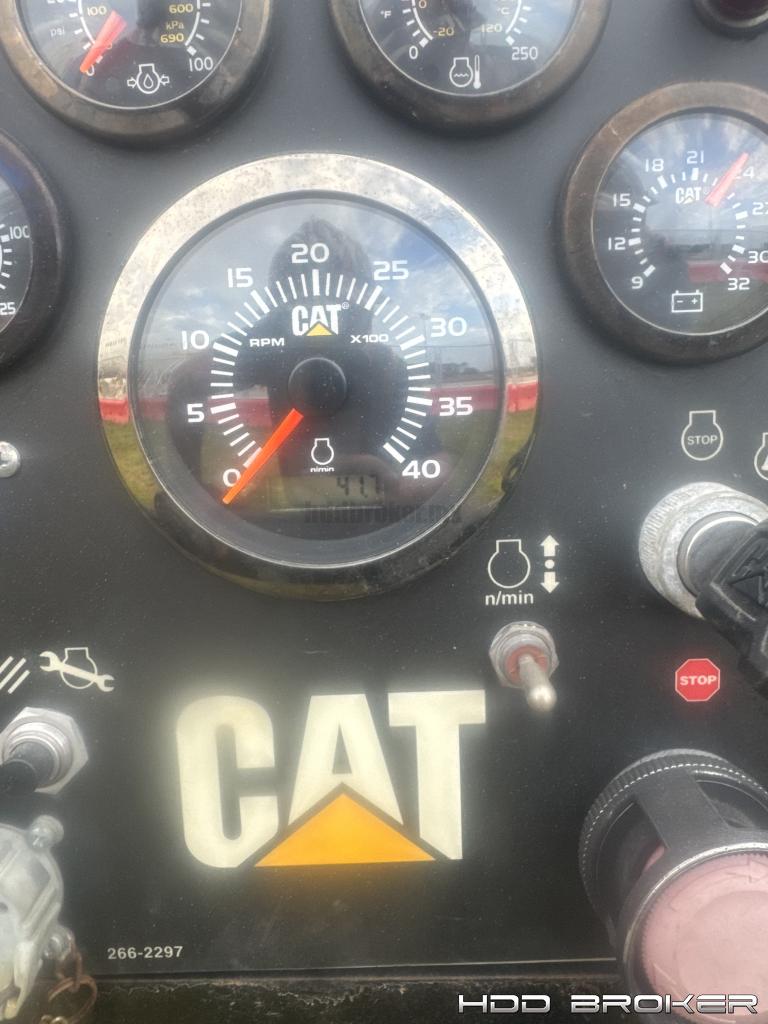

Seller States: 41.7 Hours only!
Accessories:

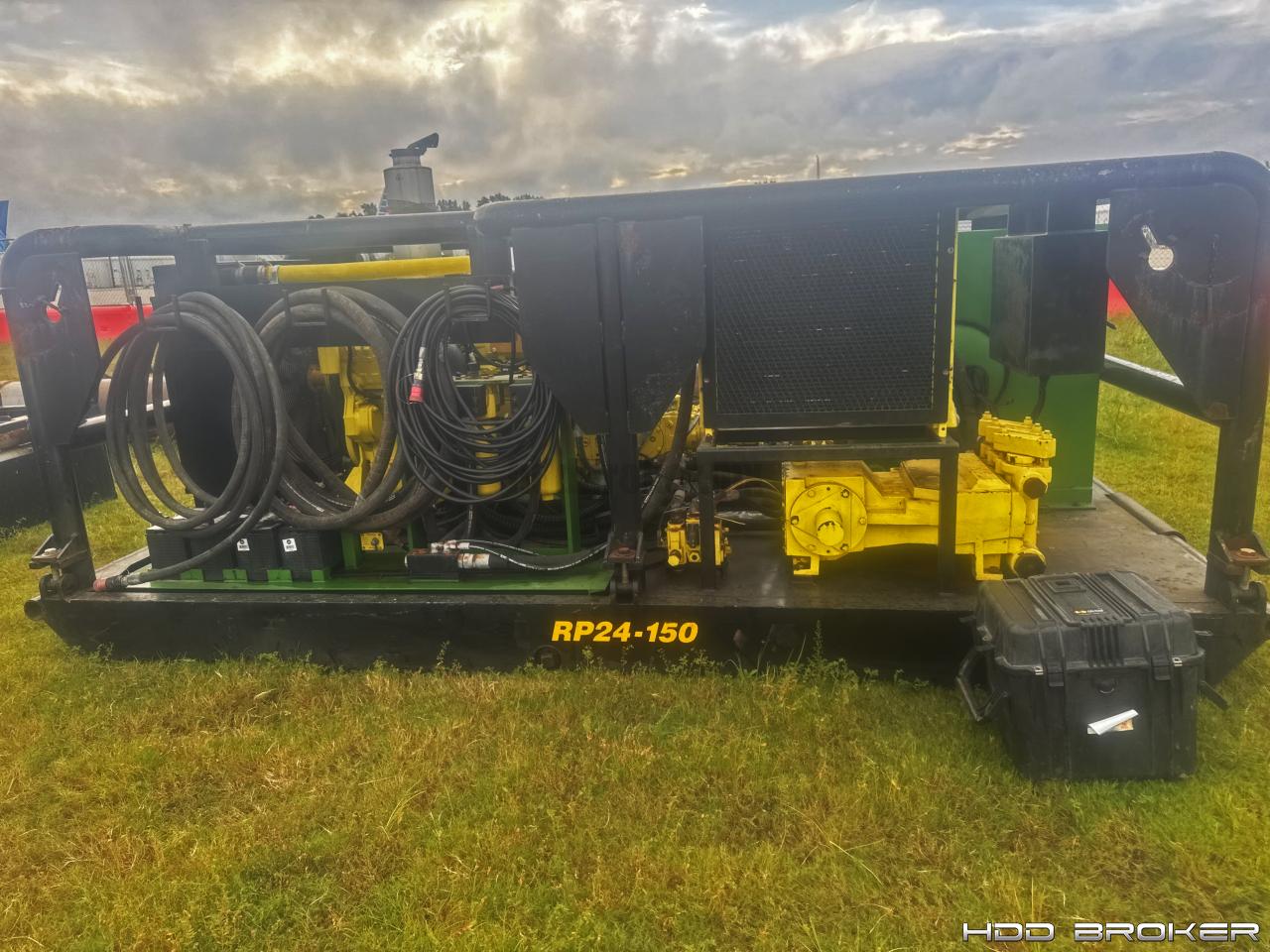

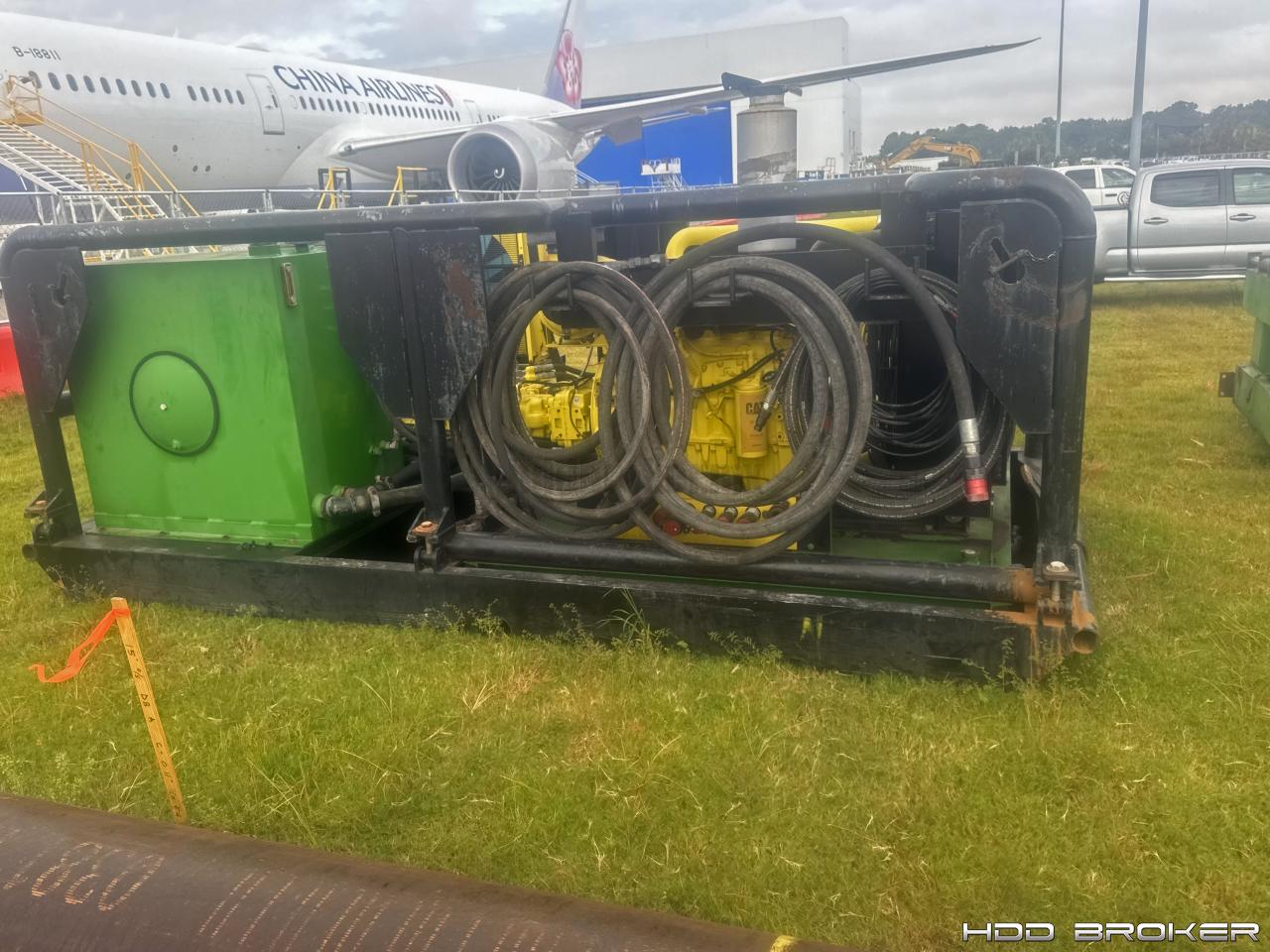

-Open, Skid Mounted Power Pack - 350HP Cat C9, 24vdc. Complete with Hydraulic and Diesel Tanks, and 50 foot Umbilical's.
-Extendable Frame-supplied 30 feet of Frame. Sections can be added or removed, reducing the overall set up length.
-Grade Adjustable Frame feature for quick (+ or -) slope set up.
-24 Inch Casing Master Pusher with Spoil Ejectors.
-Removable Open Top, Dual Breakout Clamps - 17,000 ft./lbs. Make-up, and 40,000 ft./lbs. Breakout.
-Wire Line Ready Spindle with Rear Mud Swivel.
-Pilot Tube Ready Spindle.
-Comes with Pilot Tube Guidance System - Includes Theodolite Stand, Theodolite, Camera, Illuminated Target, Case and Monitor, Upgraded Bortech LCD screen.
-With 65 piece of 5" OD x 3-1/2" Modified API Pilot Tube x 60" Long (265 feet).

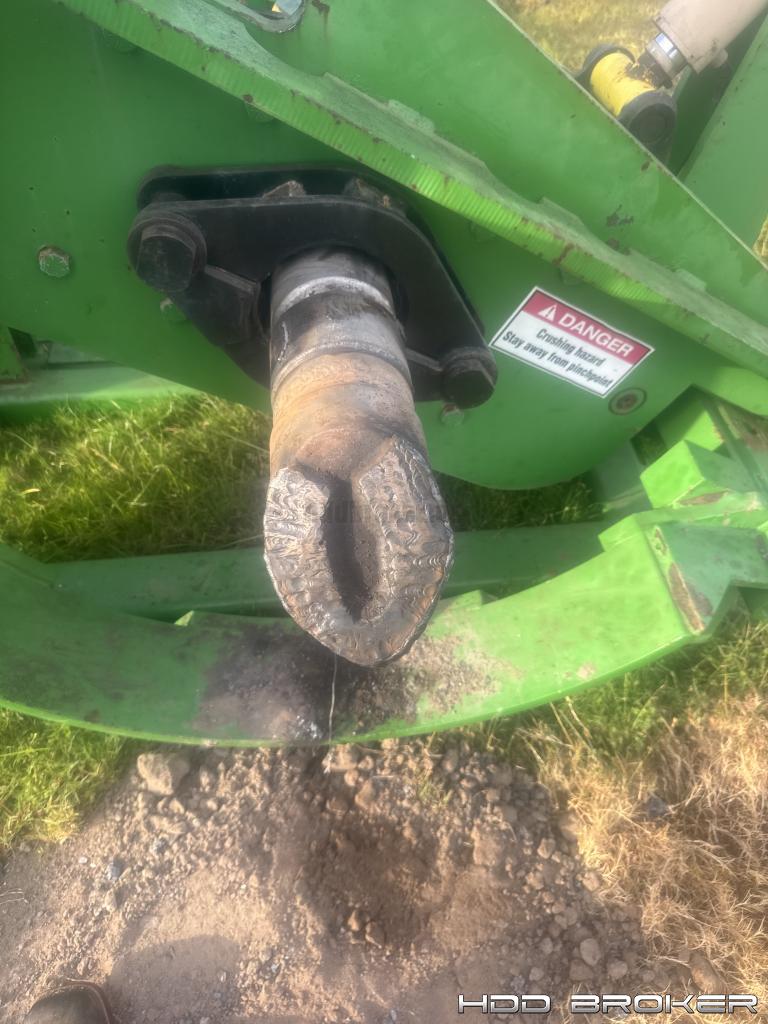

-2 Heads (one for dirt and one for Cobble).
Additional Information:
Seller States:
-Condition is New!
-Rack and Pinion Drilling System.
-Hybrid Design.
-Made to accommodate Pilot Tube, Directional Drilling and Auger Boring Applications.
ROTATION SPECIFICATIONS:
-18,646 ft./lbs. of torque @ 35 rpm.
-8,338 ft./lbs. of torque @ 70rpm.
-(boost) 22,000 ft./lbs. of torque for 5 seconds.
PUSH / PULL SPECIFICATIONS:
-150,000 lbs. of force @ 30 ft./min.
-75,000 lbs. of force @ 60 ft./min.
WORK RANGE:
-Auger Boring Mode - 200 feet, Max Diameter 24 inch.
-Pilot Tube Mode - 300 feet - 400 feet.
-Directional Drill Mode - 1500 feet, Max Diameter 36 inch.
