Descripción general:

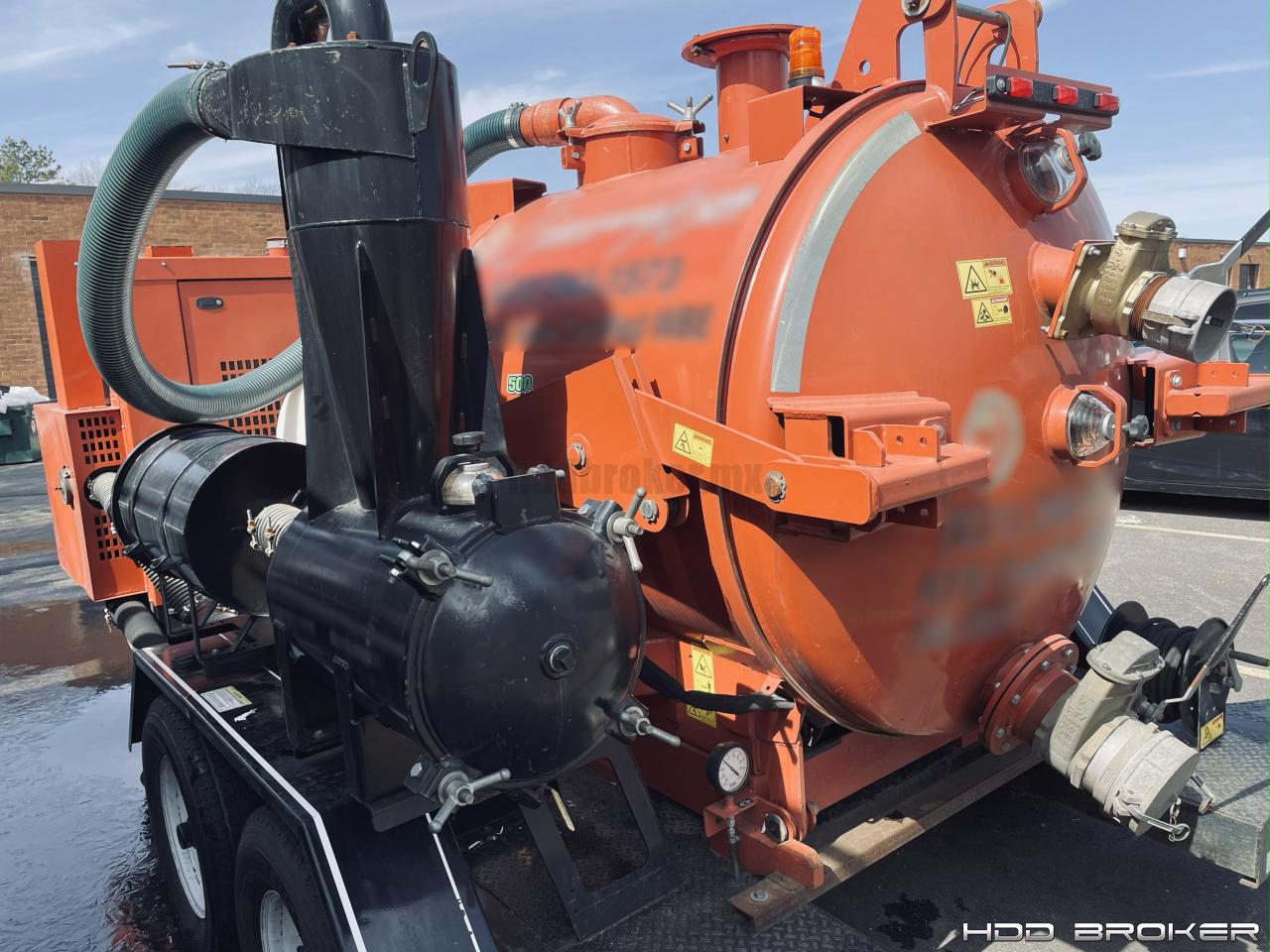

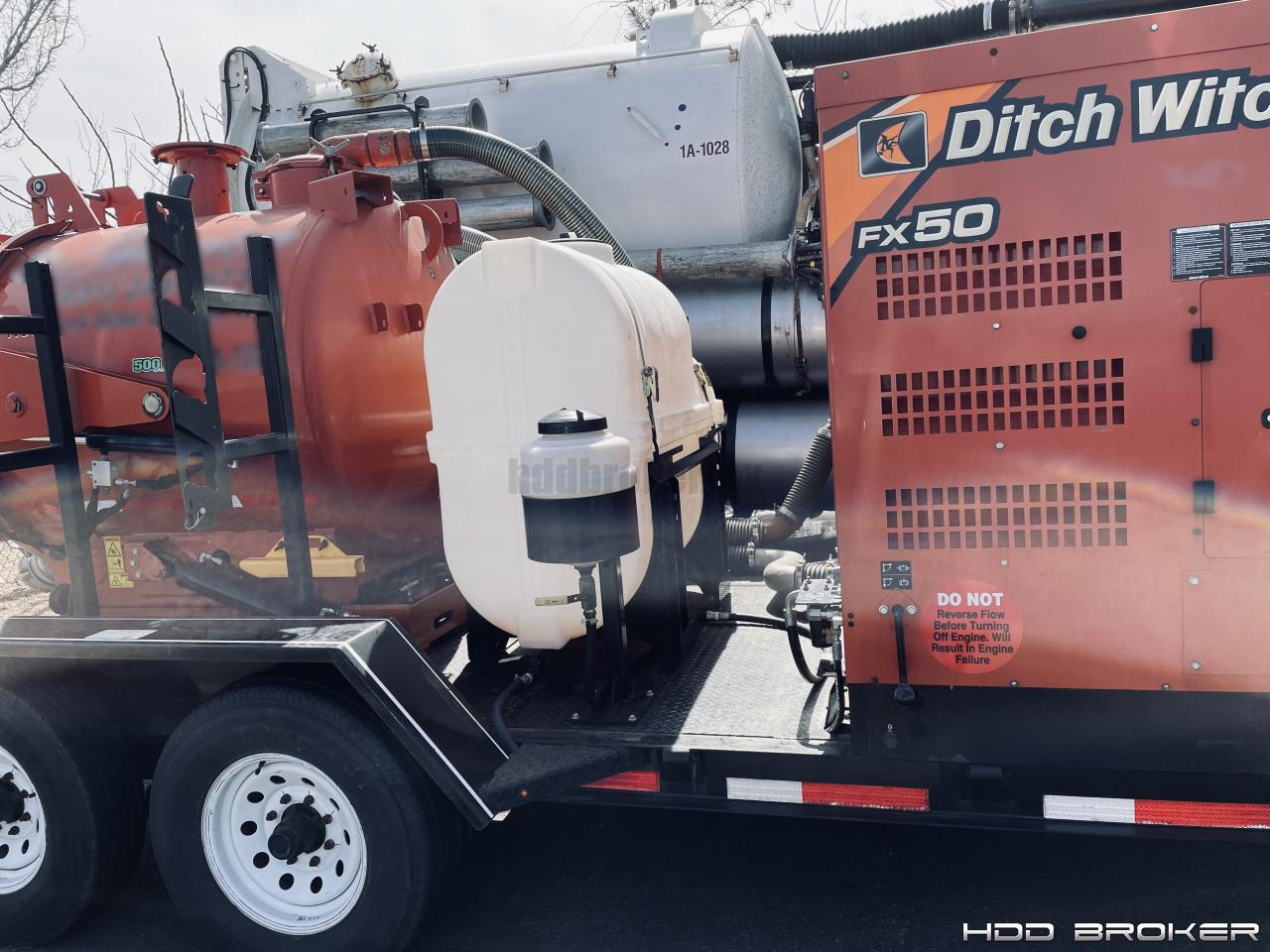

2016 Ditch Witch FX50-500 Vacuum System.

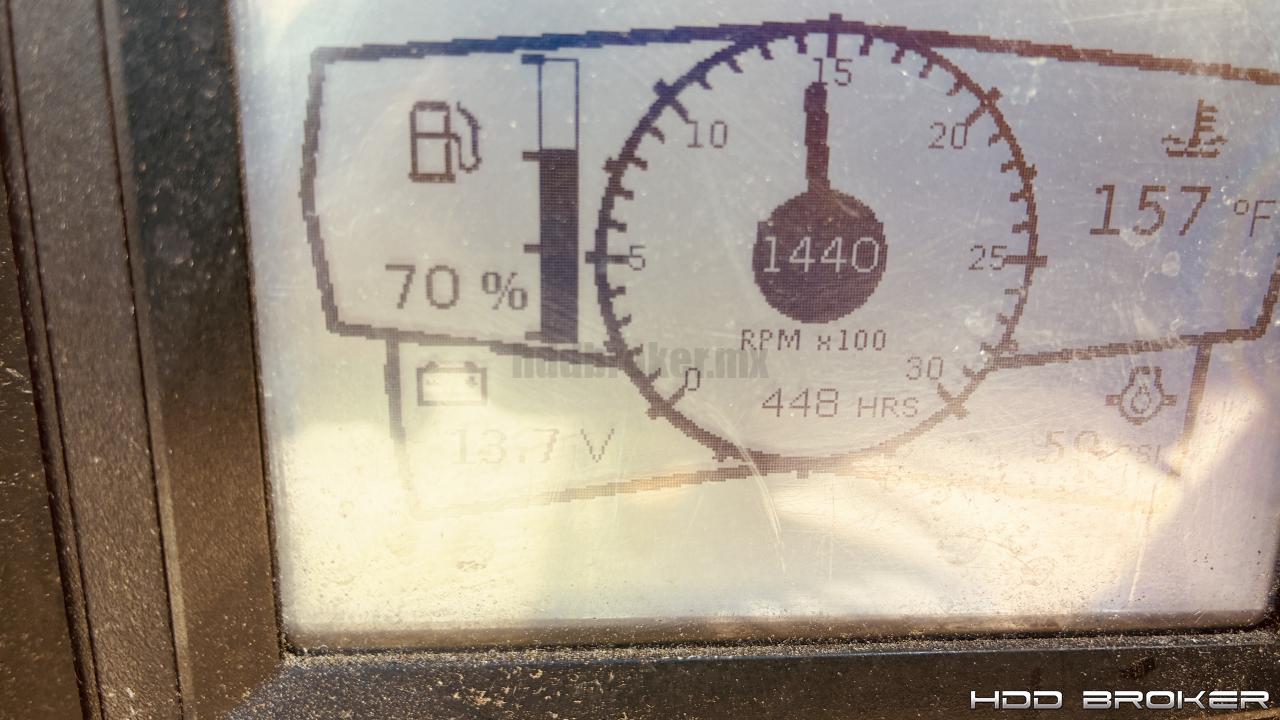

Seller States: 449 Hours only!

Remolques:

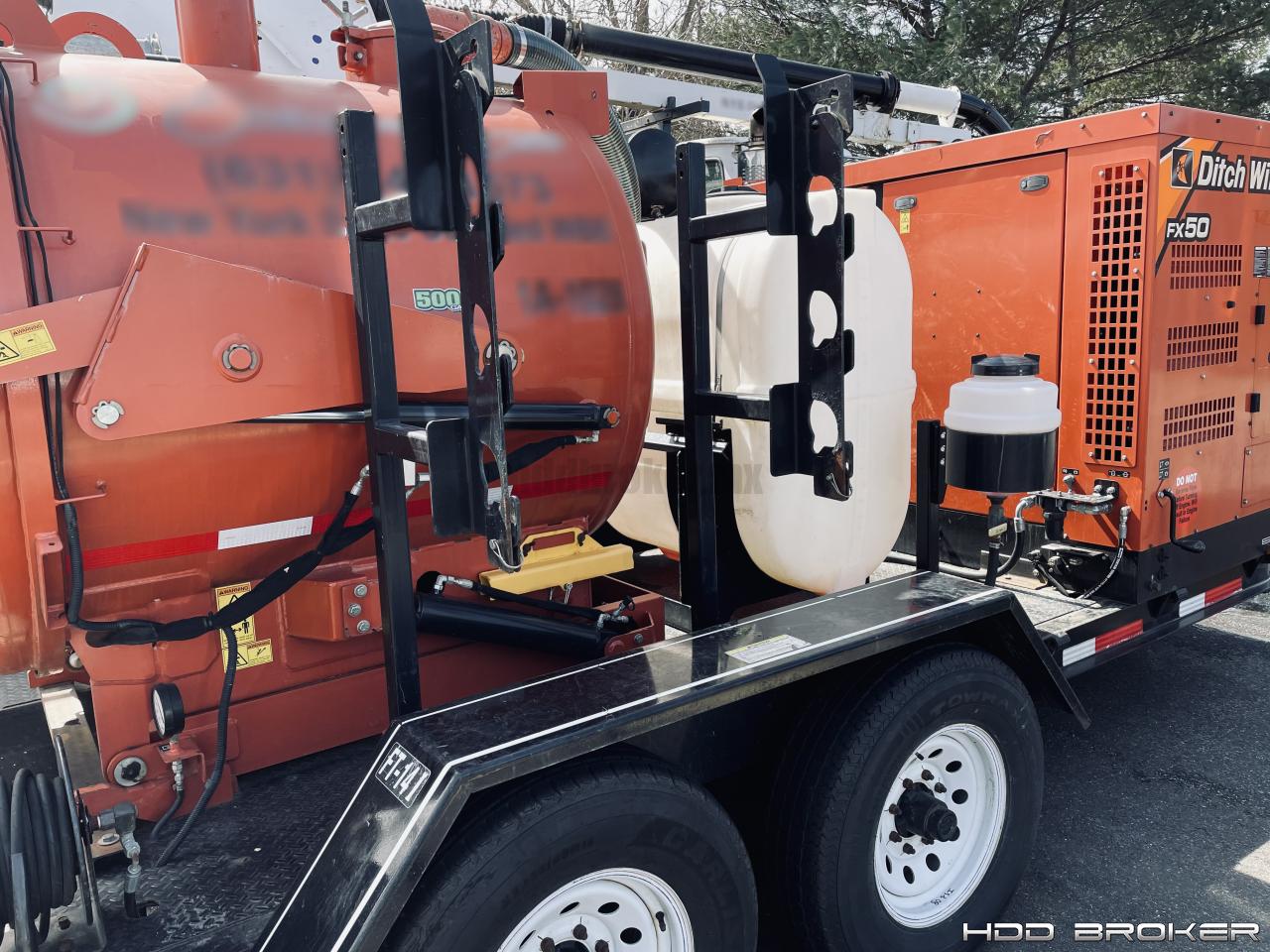

Mounted on a Felling FT-14I Trailer.

Trabajos/modificaciones recientes:
Seller States:
-New Back Door Seal installed April 2025.
-Jetter Hose replaced July 2025.

Información adicional:
Seller States:
-500 Gallon Spoils Tank.

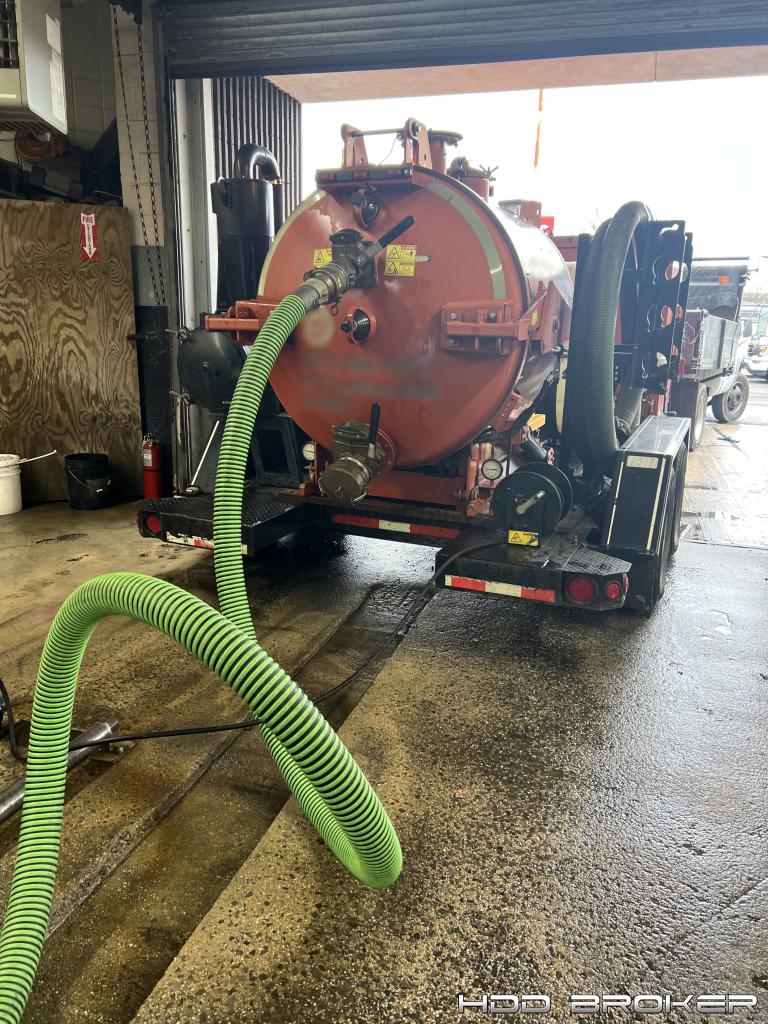

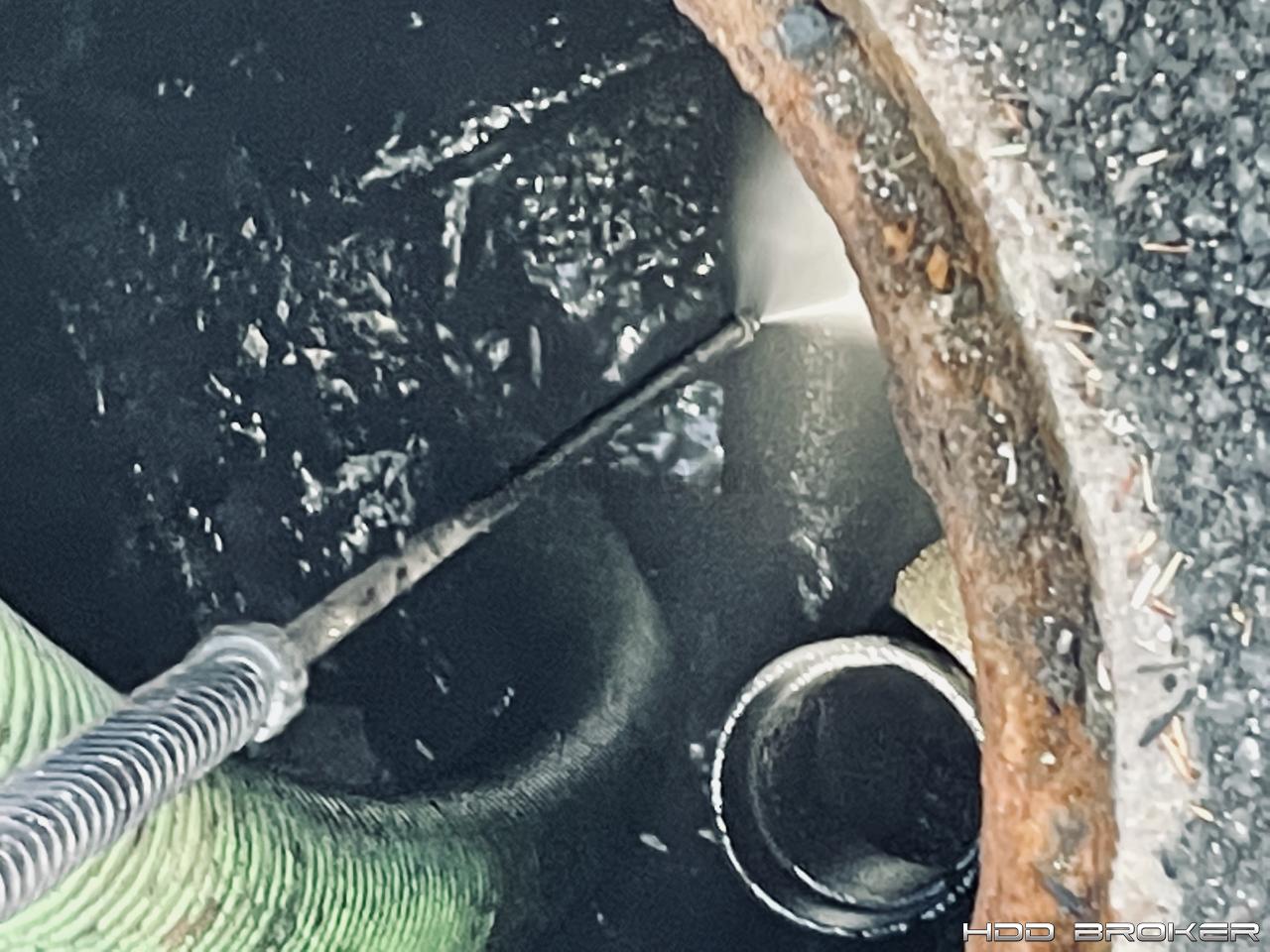

-20' 4" Vacuum Hose and Pressure Washer Spray Gun Included.

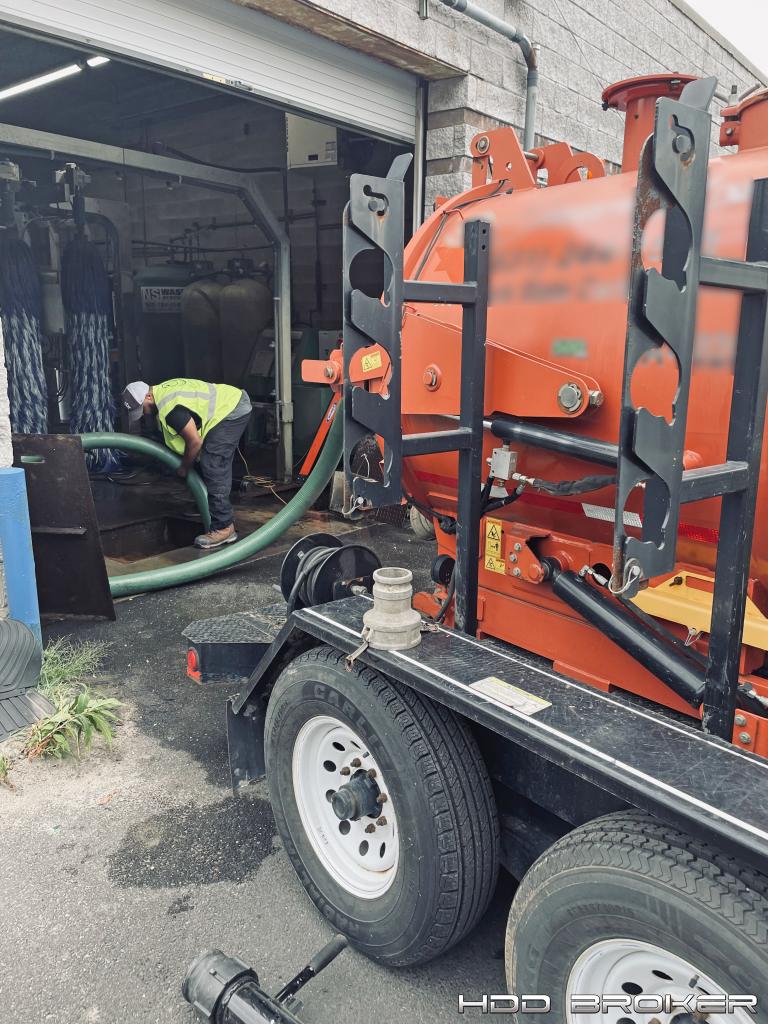

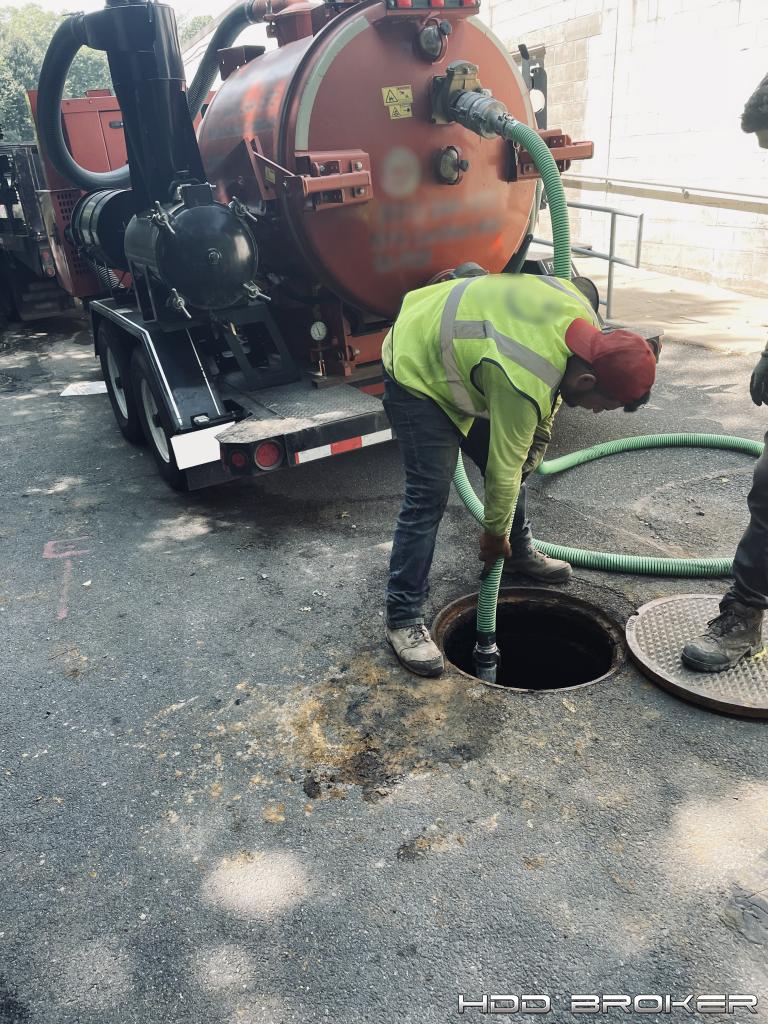

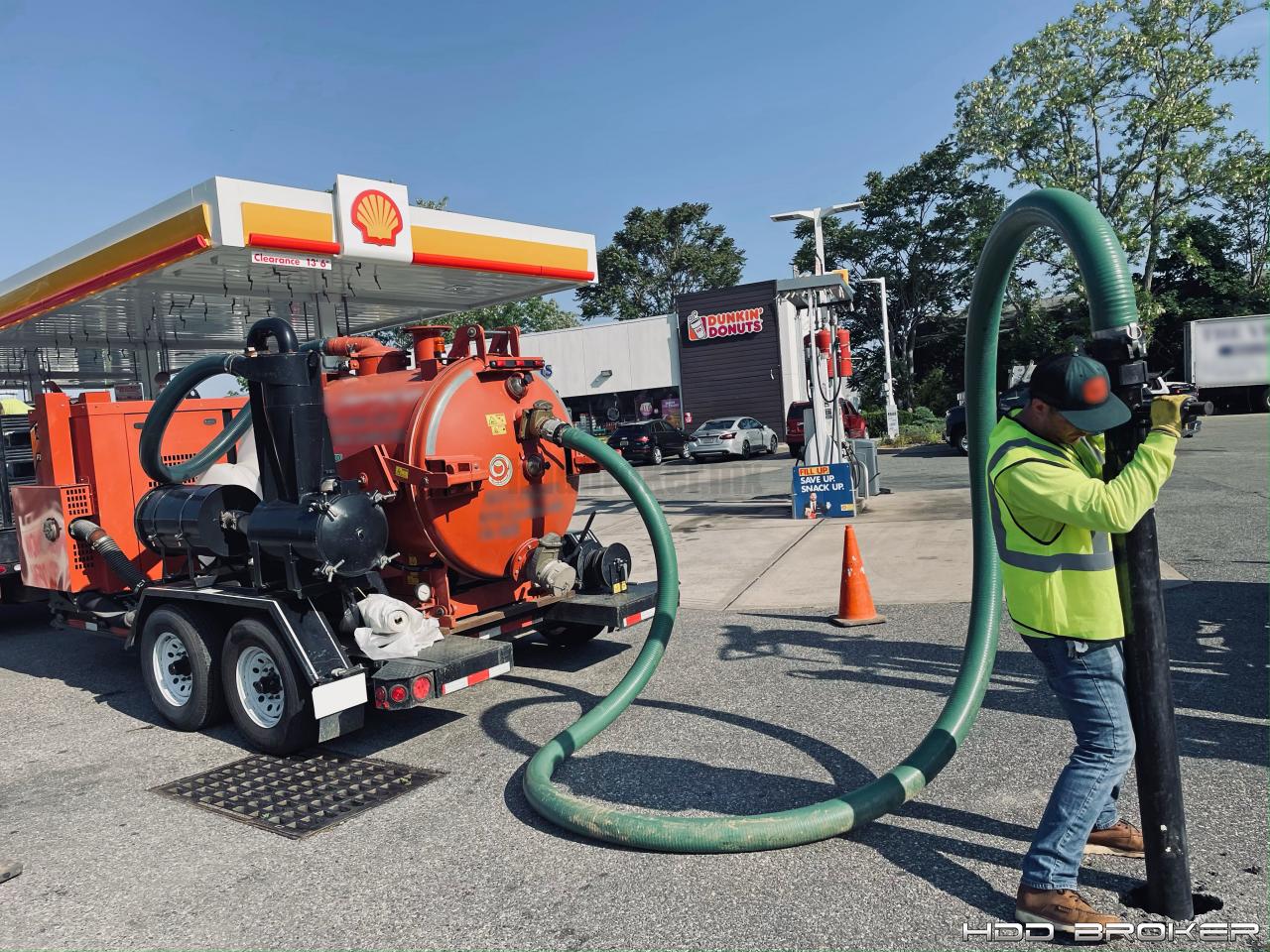

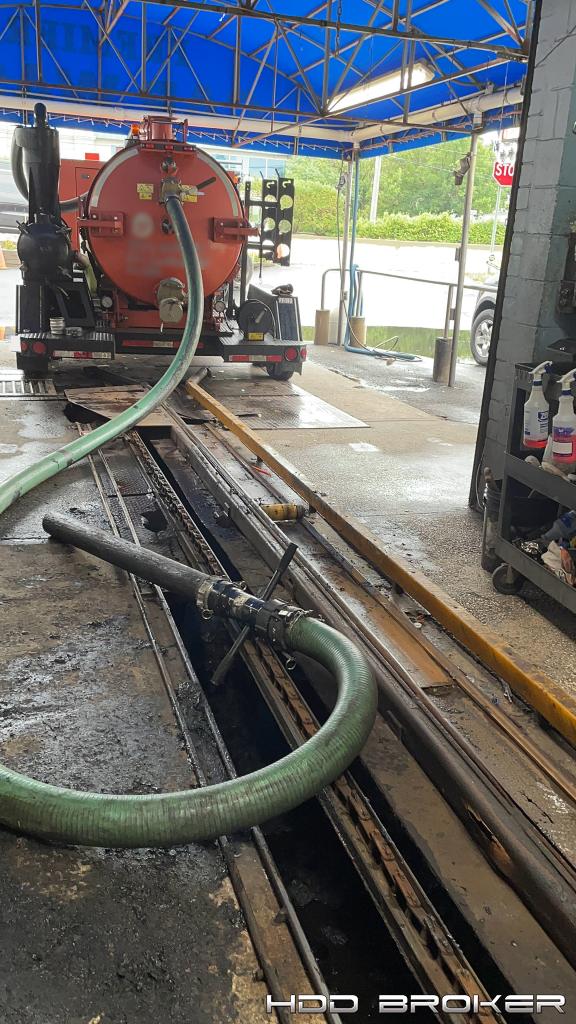

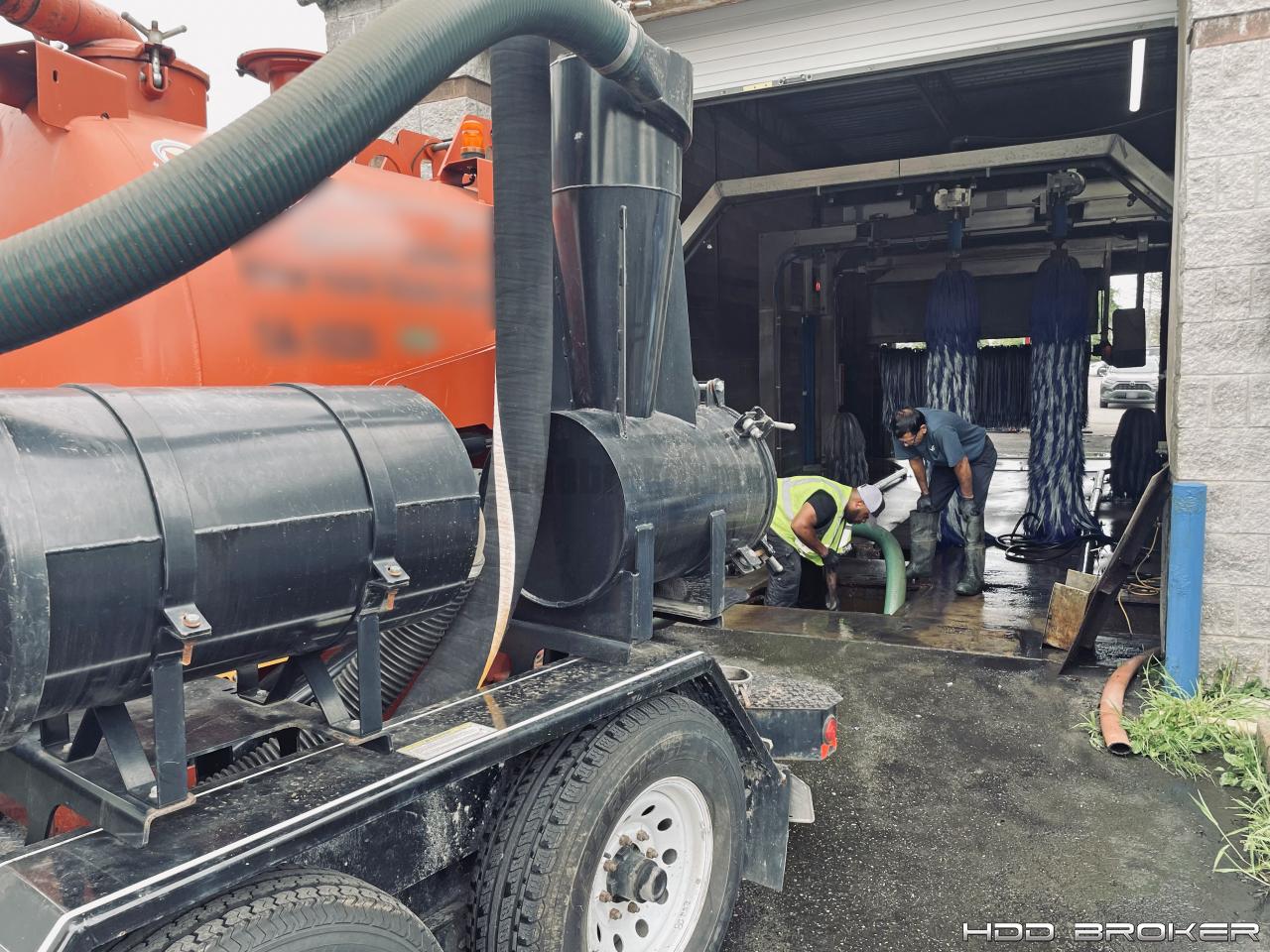

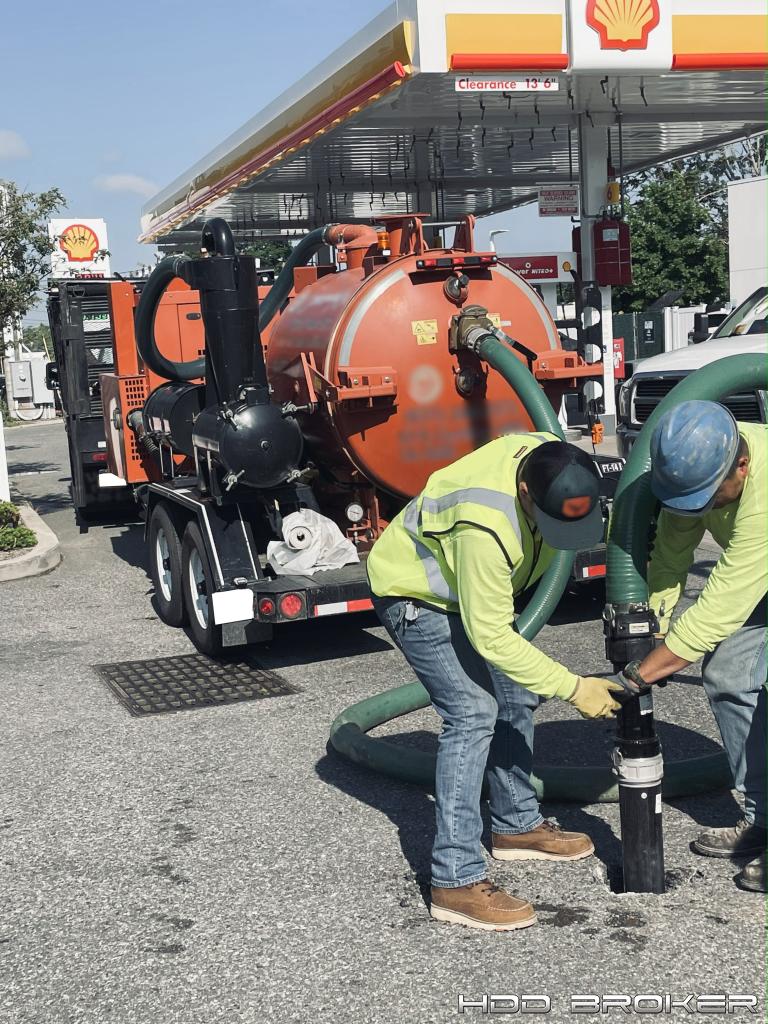

-Vacuum Excavator / Vacuum Trailer.

GENERAL SPECIFICATIONS
-Engine: 49 hp (36.5 kW) Deutz Diesel Engine.
-Fuel Tank Capacity: Up to 25 gallons (94.6 liters).
-Emissions Compliance: EPA Tier 4 / EU Stage IIIA.
-Cooling Medium: Oil.
-Number of Cylinders: 3.
-Rated Speed: 2,600 rpm.

VACUUM SYSTEM
-Airflow: 1,020-1,027 cfm (28.8-29.1 meters cubed/min).
-Maximum Vacuum: 16 in Hg (406 mm Hg).
-Drive Type: Belt-driven.
-Filter Type: Washable polyester.
-Filter Area: 100 sq-ft (9.3 sq-mt).
-Suction Hose: 4 in diameter, 20 ft length (102 mm x 9.1 m).
-Outlet Valve Size: 6 in (152 mm).
-Inlet Valve Size: 4 in (102 mm).
-Primary Shutoff Valve Size: 12.

WATER SYSTEM
-Water Pump Flow: 5.1 gpm (19.3 L/min).
-Maximum Pressure: 3,000-3,500 psi (207-241 bar).
-Hose Reel Capacity: 50 ft (15.3 m).
-Antifreeze System: 50/50 water/antifreeze mix.
-Clutch Type: Electric with auto de-clutch.

SPOILS TANK SPECIFICATIONS
-Capacity: 500 gallons (1,893 liters).

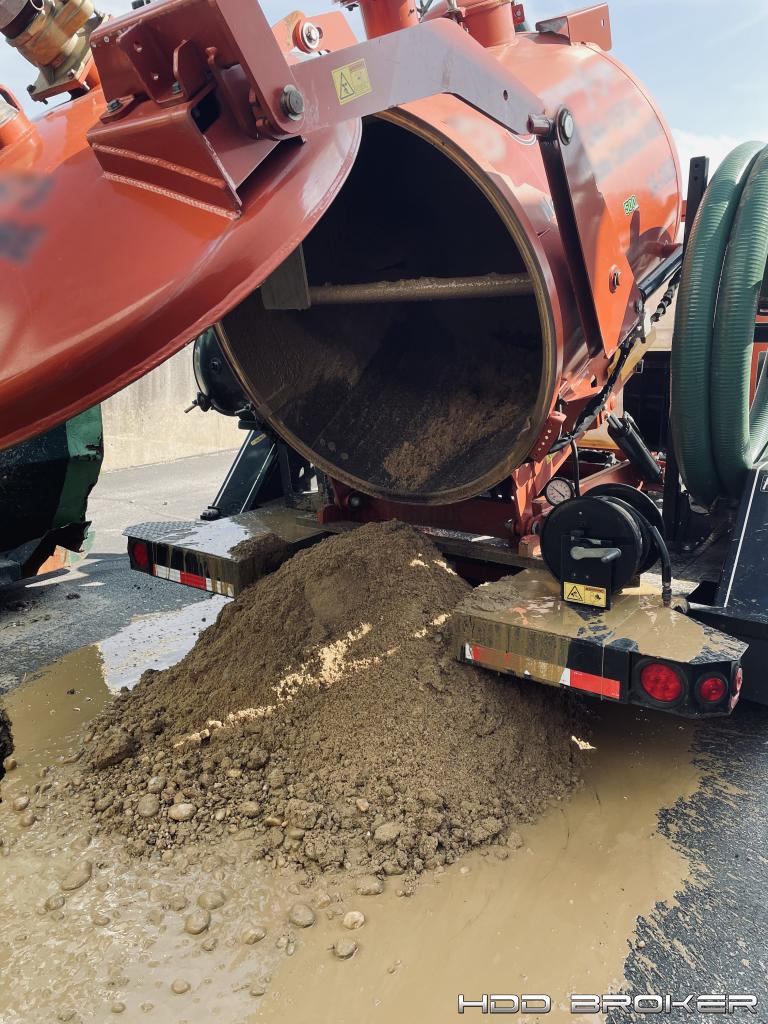

-Construction: Heavy-duty steel with a full-opening hydraulic rear door for efficient unloading.
-Outlet Valve Size: 6 inches (152 mm).
-Inlet Valve Size: 4 inches (102 mm).
-Primary Shutoff Valve Size: 12 inches (305 mm).

DIMENSIONS AND WEIGHT
(500-gallon spoils tank with 200-gallon water tank)
-Length: Approximately 214.3 inches (5.44 meters).
-Width: Approximately 96 inches (2.44 meters).
-Height: Approximately 93 inches (2.36 meters).
-Empty Weight: Varies based on configuration; specific weight not provided.
-Trailer GVWR: Varies based on configuration; specific GVWR not provided.

OPTIONAL FEATURES
-Reverse Flow: Simplifies the removal of spoils and offloads spoils to a remote location.

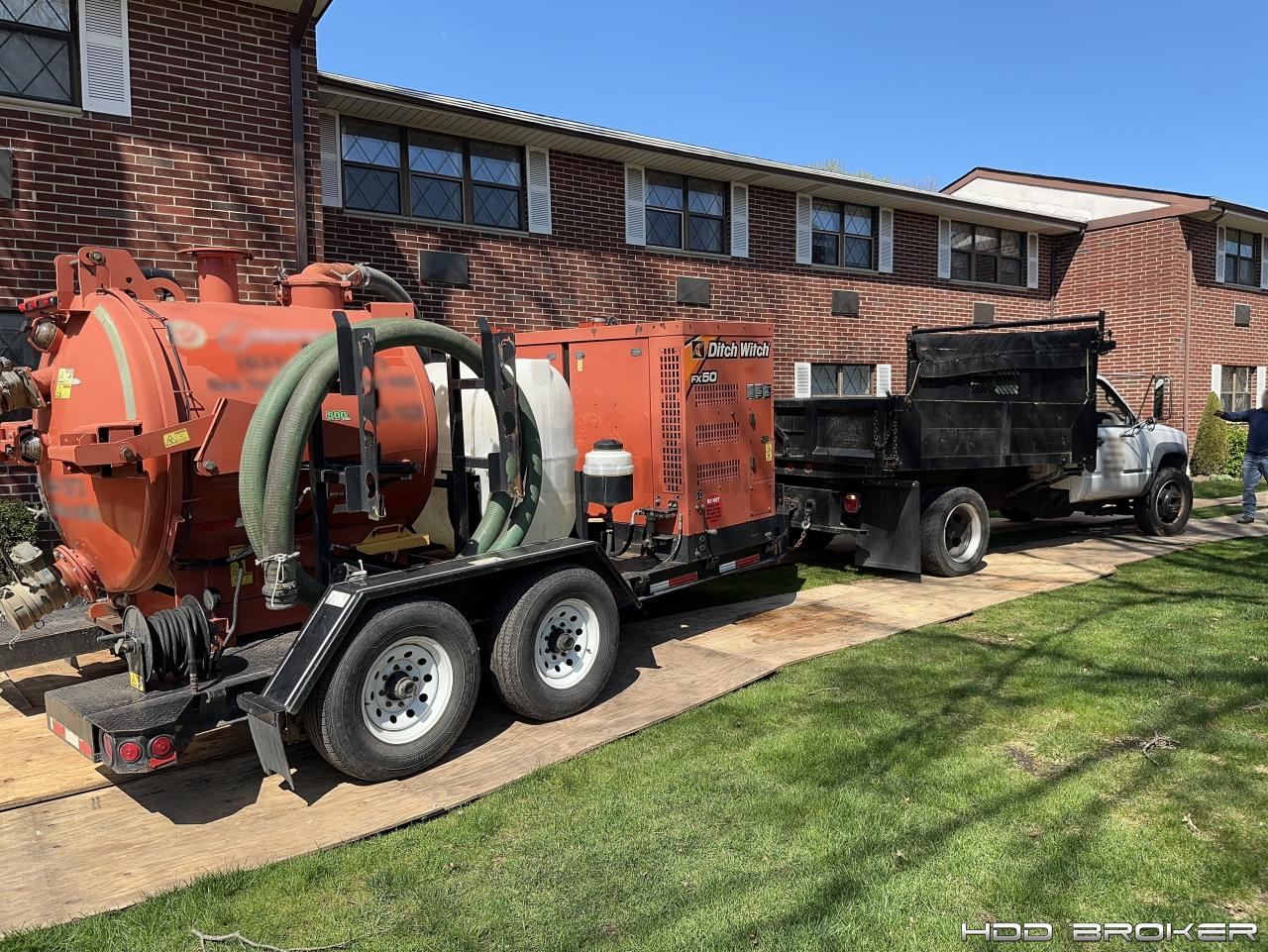

NOT INCLUDED - Pictured Truck is NOT included; Vacuum Trailer ONLY.

NOT INCLUDED - The following items are available at an additional cost:

-(2) x 33 Foot Vacuum Hose 3 inch Hose.
-(1) x 33 Foot Vacuum Hose 2 inch Hose.
-Reducer 4" to 3".
-Reducer 4" to 2".
-4" Suction Tube.
-3" Suction Tube.
